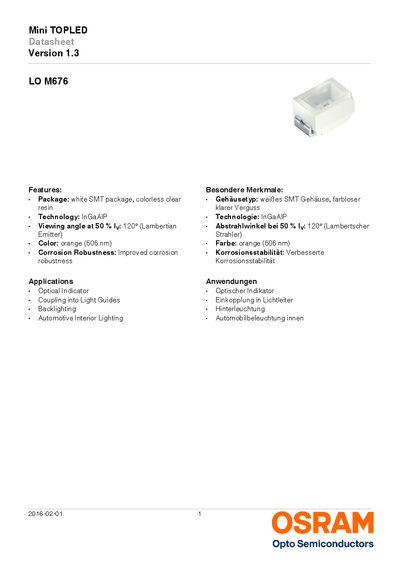

The OSRAM M676 Mini TOPLED datasheet provides specifications, ratings, and application information for the orange LED component.
The Mini TOPLED (model M676) is an orange InGaAlP LED offered in a white SMT package with a clear resin encapsulation. It features a 120° Lambertian viewing angle and a peak wavelength around 606 nm, making it suitable for optical indicators, light‑guide coupling, backlighting, and automotive interior lighting.
The datasheet lists maximum ratings such as a continuous forward current of 30 mA, surge current up to 800 mA, reverse voltage of 12 V, and operating temperature from –40 °C to 100 °C. Ordering information, brightness groups, spectral characteristics, thermal resistance values, and safety notes are also included. This manual is written in German.
| Package type | white SMT package, colorless clear resin |
|---|---|
| Viewing angle (50 % I_V) | 120° |
| Color (dominant wavelength) | orange (606 nm) |
The LED has a 120° viewing angle at 50 % I_V.
