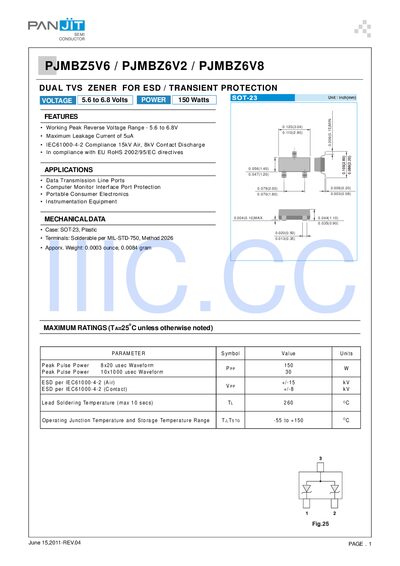

The PanJit datasheet provides specifications, ratings, and application information for the PJMBZ5V6, PJMBZ6V2, and PJMBZ6V8 dual TVS Zener diodes.
This document describes the dual TVS Zener diodes PJMBZ5V6, PJMBZ6V2 and PJMBZ6V8, highlighting their use for ESD and transient voltage protection in data transmission lines, computer monitor interfaces, portable consumer electronics, and instrumentation equipment.
Key electrical and mechanical characteristics are listed, including reverse stand‑off voltage, breakdown voltage, leakage current, clamping voltage, peak pulse power, and package details. The datasheet also provides rating curves, mounting pad layout, and ordering information.
| Working Peak Reverse Voltage Range | 5.6 to 6.8 V |
|---|---|
| Maximum Leakage Current | 5 µA |
| IEC61000‑4‑2 ESD Compliance | 15 kV Air, 8 kV Contact |
| Package Type | SOT‑23 plastic |
They are supplied in a plastic SOT‑23 package.
They comply with IEC61000‑4‑2, providing 15 kV protection for air discharge and 8 kV for contact discharge.
They are used for data transmission line ports, computer monitor interface port protection, portable consumer electronics, and instrumentation equipment.
