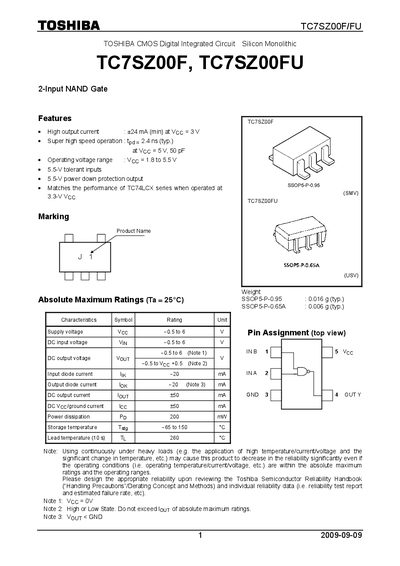

TC7SZ00F/FU is a 2-input NAND gate from TOSHIBA. It has high output current, super high speed, wide operating voltage range (1.8-5.5V), tolerance for 5.5V input voltage and compatible performance with TC74LCX series when operated at 3.3V VCC.
The TC7SZ00F is a 2‑input NAND gate from Toshiba offering high output current (+24 mA min at 3 V) and fast switching with a typical propagation delay of 2.4 ns at 5 V, 50 pF. It operates over a supply range of 1.8 V to 5.5 V and includes protection features such as 5.5‑V tolerant inputs and power‑down protection.
The document lists detailed electrical parameters, AC characteristics, and mechanical data for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages. It also contains usage restrictions, advising against deployment in high‑reliability or safety‑critical applications such as nuclear, aerospace, medical, or automotive systems.
| High output current | +24 mA (min) at Voc = 3 V |
|---|---|
| Propagation delay (typical) | 2.4 ns |
| Supply voltage range | 1.8 V to 5.5 V |
| Power dissipation | 200 mW |
| Storage temperature | 65 °C to 150 °C |
| Lead temperature (10 s) | 260 °C |
| Package types | SSOP5‑P‑0.95, SSOP5‑P‑0.65A |
The device operates from 1.8 V up to 5.5 V.
Typical propagation delay is 2.4 ns.
It is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.
