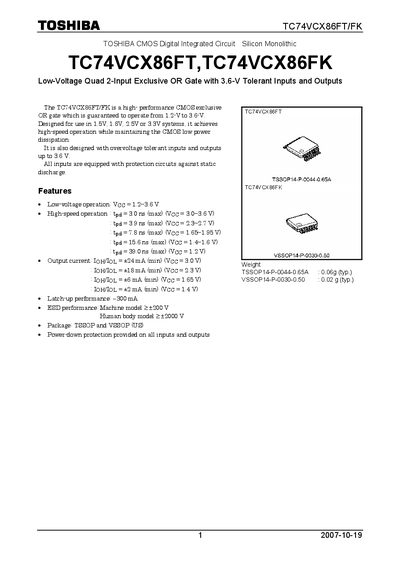

The TC74VCX86FT/FK is a high-performance CMOS exclusive OR gate which is guaranteed to operate from 1.2-V to 3.6-V. Designed for use in 1.5V, 1.8V, 2.5V or 3.3V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation.
The TC74VCX86F family provides a high‑performance CMOS exclusive‑OR gate that operates from 1.2 V to 3.6 V, with over‑voltage‑tolerant inputs and outputs up to 3.6 V. It features low static power, static‑discharge protection on all inputs, and a typical propagation delay of 3 ns at 3.0 V supply.
The device is offered in TSSOP‑14 and VSSOP‑14 packages, weighs only 0.06 g (typical), and is rated for operation from –40 °C to 85 °C. Absolute maximum ratings include a supply voltage range of –0.5 V to 4.6 V and an ESD rating of +2000 V (human‑body model).
| Supply voltage range (operating) | 1.2 V ~ 3.6 V |
|---|---|
| Maximum propagation delay (tpd) | 3.0 ns (max) at Vcc = 3.0 ~ 3.6 V |
| Output current (Ion/loL) | +24 mA (min) at Vcc = 3.0 V |
| Operating temperature range | –40 °C ~ 85 °C |
| Package types | TSSOP‑14 and VSSOP‑14 |
| Typical weight | 0.06 g (typ.) |
| Absolute maximum supply voltage | –0.5 V ~ 4.6 V |
The device is designed to operate with a supply voltage (VCC) from 1.2 V to 3.6 V.
The typical maximum propagation delay is 3.0 ns when VCC is between 3.0 V and 3.6 V.
The absolute maximum supply voltage rating is –0.5 V to 4.6 V.
The IC is offered in TSSOP‑14 and VSSOP‑14 surface‑mount packages.
