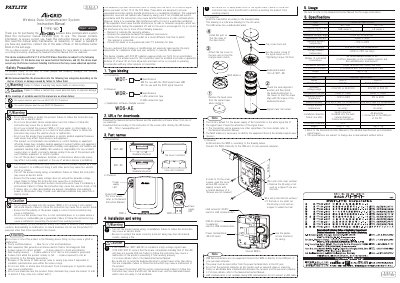

This document is the instruction manual for WD 8144-A wireless data communication system, which introduces the functions, usage methods and precautions of the product.
The document serves as a digest version of the General Instruction Manual for the PATLITE AlirGRID Wireless Data Communication System. It provides essential information on safety precautions, including warnings about electric shock, fire hazards, and interference with medical equipment or pacemakers.
The manual details installation procedures for both the transmitter (WDT-6M/SE) and receiver units (WDR-L/U), specifying wiring requirements and mounting instructions. It also lists technical specifications for various models within the series, such as voltage ranges, operating temperatures, and physical dimensions.
| Rated Voltage (Transmitter) | 24V DC |
|---|---|
| Allowable Voltage Range (Transmitter) | 21.6V DC to 26.4V DC |
| Operating Ambient Temperature (Receiver WDR-L/U) | -10°C to 60°C |
| Weight (Transmitter WDT-6M/SE) | 62g ± 5g |
| Power Supply Type (Receiver WDR-U) | USB bus powered |
Do not use this product near pacemakers or electric medical equipment because radio waves may affect these devices and equipment.
No, USB hub connections are not supported. Connect the WDR-U directly to the USB port of your personal computer.
The allowable voltage range is 21.6V DC to 26.4V DC.
