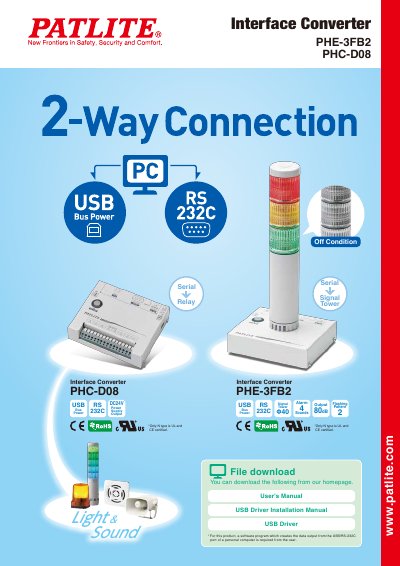

This user manual covers the installation, specifications, and communication protocols for PATLITE PHE-3FB2 and PHC-D08 interface converters.
The document provides a User's Manual for the PATLITE PHE-3FB2 and PHC-D08 Interface Converters. It details product specifications including power supply requirements, operating temperature ranges, and physical dimensions for both models (standard and N-type). The manual also explains that an external USB driver is required to utilize the USB interface on a personal computer.
| Operating Voltage Range (AC Adaptor) | 90VAC - 264VAC |
|---|---|
| USB Interface Type | Standard Type B (Female) |
| RS-232C Interface Type | D-Sub 9 pin (Male) |
| Sound Pressure Level | 80dB or more (1m from the buzzer) |
No, the AC adaptor is not included for N-type models.
The supported OS includes Windows 7 through Windows 10 and various Windows Server versions.
No, the USB Cable (type A male to type B male) is not included and must be purchased separately.
