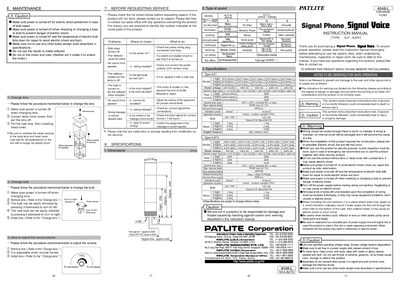

This is the instruction manual of KJT , KJPV.
This guide provides step‑by‑step instructions for installing Patlite KJT and KJPV signal phones. It covers mounting, wiring diagrams, power supply connections, and how to configure the sound type and volume. Safety cautions are highlighted throughout to prevent electric shock and equipment damage.
The manual also details routine maintenance tasks such as changing the lens, replacing the bulb, and checking the reflector. Technical specifications, model configurations, and part numbers are listed for reference, and contact information for Patlite service centers worldwide is included.
| Rated voltage | 24V AC/DC, 100V AC, 120V AC, 200V AC, 240V AC |
|---|---|
| Maximum sound pressure level | 95 dB at 1 m |
| Operating temperature range | 10 °C – +55 °C (Humidity ≤85 %) |
The unit can operate on 24 V AC/DC, 100 V AC, 120 V AC, 200 V AC, or 240 V AC.
