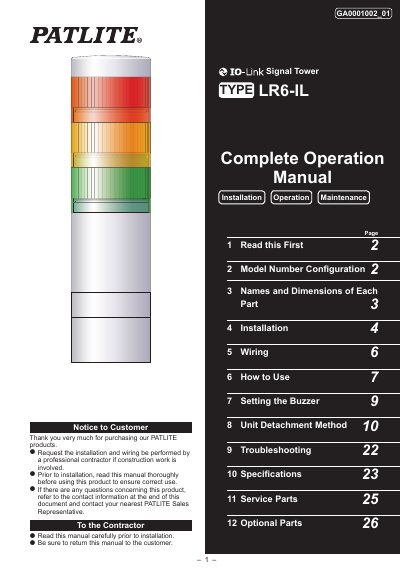

PATLITE LR6-IL Signal Tower Operation Manual

This manual covers the installation, operation, maintenance, and troubleshooting of the PATLITE LR6-IL IO-Link compliant signal tower.

Brand: Patlite
Document type: User Manual
Language: English
Pages: 30
File format: PDF
File size: 10.2 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B5704FCCE5D13268C50CB1AFF5E20495
PDF: PATLITE LR6-IL Signal Tower Operation Manual PDF

About this manual

The PATLITE LR6-IL is an IO-Link compliant signal tower designed for industrial applications. It features a modular design allowing for the attachment of LED units (Red, Amber, Green) and a Buzzer unit to provide visual and audible signals. The device supports both Simple Mode for basic ON/OFF control and Advanced Mode for complex lighting patterns and intermittent buzzer sounds.

What's inside

Safety Precautions
Model Number Configuration
Names and Dimensions of Each Part
Installation
Wiring
How to Use (Simple/Advanced Modes)
Setting the Buzzer
Unit Detachment Method
Troubleshooting
Specifications

Specifications

Connector Type	M12, 5-pins, A code
LED Colors	Red / Amber / Green (From top to bottom)
Mounting Options	Direct Mount / M12 Connector or 1/2" NPT Internal Threads

Frequently asked questions

How many LED units can be attached to a standard LR6-IL tower?

The maximum number of attachment units per product is five LED units, plus one buzzer unit.

What is the recommended torque for M12 connector installation?

While specific torque isn't listed in the text for M12, it specifies 0.6 N·m for mounting holes and warns against improper wiring.
