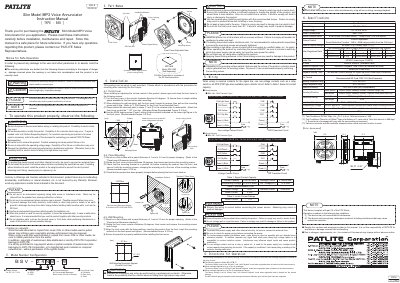

This document is the instruction manual for the Slim Model MP3 Voice Annunciator product of PATLITE company. It mainly introduces the safety operation precautions, installation instructions, model configuration and other content of the product.
The PATLITE BSV is a slim model MP3 voice annunciator designed for panel or wall mounting. It supports both NPN and PNP transistor types and features pre-recorded alarm messages as well as an SD card slot for custom audio files.
Installation involves removing the front cover, securing the unit to a flat surface with a thickness of 1 mm to 3.5 mm using M3X6 tapping screws, and connecting power and signal wires according to the specific transistor type configuration.
| Mounting Surface Thickness | 1 mm to 3.5 mm |
|---|---|
| Recommended Torque (Mounting Screw) | 0.3 N-m |
| Rated Voltage Range | DC 12 ～ 24 V |
It supports both NPN and PNP transistor types.
The recommended torque for tightening the mounting screws is 0.3 N-m.
The rated voltage range is DC 12 to 24 V.
