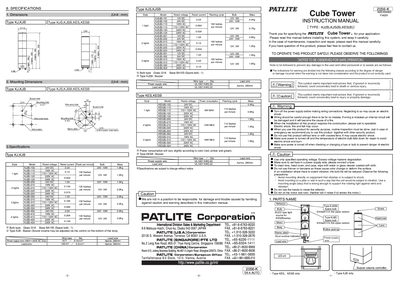

The manual introduces the use of KJ(B),KJS(B),KES(B) series products
This manual provides step‑by‑step instructions for installing Patlite rotating‑light cube towers (KJ(B), KJS(B) and KES(B)). It includes safety warnings, wiring diagrams, mounting procedures, and a list of replacement parts.
The guide also details maintenance tasks such as changing lenses and bulbs, and offers troubleshooting tips for common issues like motor failure or buzzer problems.
| Flashing rate | 130 flashes per minute (KJ series) |
|---|---|
| Power consumption | 6 W MAX (KES), 12 W MAX (KJS), 18 W MAX (KJ) |
| Bulb type | Glass G18, Base BA15S |
Turn off the power, loosen the head‑cover screw, remove the old lens, install the new lens and reinstall the rubber packing.
The power supply must be turned off before any wiring is performed to avoid electric shock or fire.
Install the tower in a vertical position, drill the required mounting holes per the specifications, and secure it with accessory nuts.
The manual lists lenses, reflectors, bulbs, head covers, LED units (KES only), rubber packings, and motors as replaceable parts.
