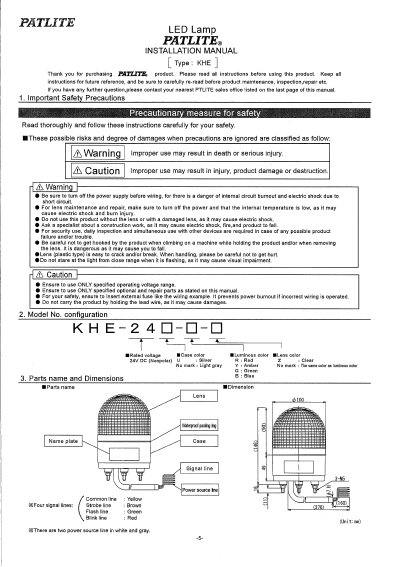

This manual provides safety precautions and step‑by‑step instructions for installing the Patlite KHE LED lamp. It explains required protective measures, such as turning off power before wiring, using the correct voltage range, and employing a rubber mount for outdoor use.
The guide details the mounting process, wiring diagram, lens replacement, and optional repair parts. It also includes a troubleshooting chart and technical specifications such as rated voltage, leak current, and available lens colors.
| Rated voltage | 24V DC (Non‑polar) |
|---|---|
| Leak current | ≤0.1 mA |
Turn off the power, rotate the lens to the left to remove it, place the new lens and turn it to the right, then reinstall the waterproof packing ring.
