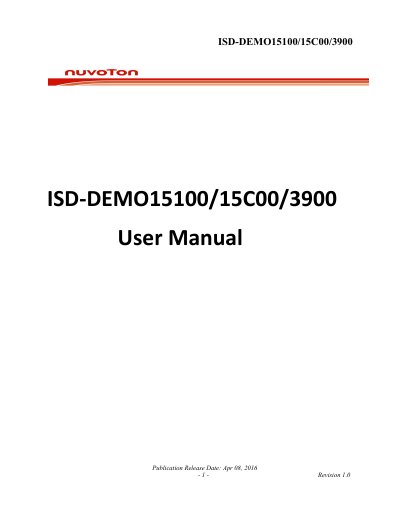

This manual describes the overview, introduction, board configuration, VPE operation, and how to recover the locked device of ISD-DEMO15100/15C00/3900 Rev_A.
This document serves as a user guide for the Nuvoton ISD-DEMO15100/15C00/3900 series evaluation boards. It details the hardware configuration, including jumper settings for power, audio output, and clock sources, and explains how to connect these demo boards with either the ISD-ES_MINI_USB dongle or larger motherboards.
The manual also provides instructions on using the accompanying ISD-VPE15100 software suite for device programming and evaluation. Additionally, it includes a specific appendix describing the recovery procedure for devices that have locked up due to bad memory content.
The main difference is that ISD15C00 and ISD3900 use external flash, while ISD15100 has internal flash.
The complete evaluation kit uses the ISD-VPE15100 GUI application which runs on a Windows PC.
