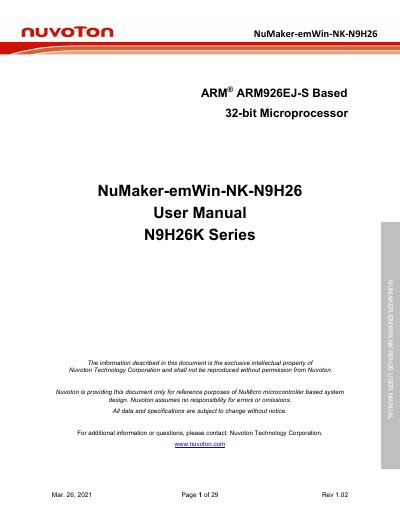

NuMaker-emWin-NK-N9H26 is the specific development board for the Nuvoton N9H26K series ARM® ARM926EJ-S microcontroller. It is equipped with rich peripheral interfaces and can be widely used in the development of consumer electronics and IoT devices. This manual mainly introduces the hardware design, peripheral functions and usage methods of NuMaker-emWin-NK-N9H26 development board, and provides NuMaker-emWin-NK-N9H26 development board software development environment configuration method.
The NuMaker-emWin-NK-N9H26 is a specific development tool for the N9H26 series, designed to help users develop and verify application programs easily. It consists of two portions: the NuMaker-emWin-NK-N9H26 main board and the NuMaker-TFT-LCD5 LCM display board. The main board features an ARM926EJ-S CPU core and is integrated with various interfaces including USB2.0 HS Host/Device, NAND/eMMC/SD/SDIO/SPI host controllers, video codecs, and audio processing units.
| CPU Core | ARM926EJ-S |
|---|---|
| USB Interfaces | USB2.0 HS Host/Device |
| Display Support | 480(RGB)/272 |
| Audio Features | 32-channel SPU |
It is the specific development tool for the N9H26 series to develop and verify application programs easily.
The system includes the NuMaker-emWin-NK-N9H26 main board and the NuMaker-TFT-LCD5 LCM display board.
Users can select the boot mode using the JP1 jumper, where shorting pins 0 and 1 sets Recovery Mode and pins 1 and 2 sets Normal Mode.
