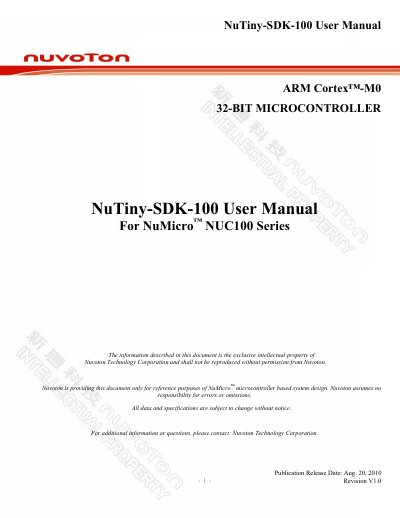

NuTiny-SDK-100 User Manual introduces the pin, jumper, PCB placement information of NuTiny-SDK-100, and introduces how to use NuTiny-SDK-100 development board in Keil μVision® IDE and IAR Embedded Workbench environment.
The NuTiny-SDK-SDK-100 is a specific development tool designed for the Nuvoton NuMicro NUC100 series of ARM Cortex-M0 microcontrollers. The kit consists of two main components: the NuTiny-EVB-100 evaluation board, which serves as a real system controller to emulate target behavior, and the Nu-Link-Me Debug Adaptor. This adapter connects the PC's USB port to the target system via a Serial Wired Debug Port, allowing users to program and debug embedded programs without needing additional ICE or debug equipment.
| Target Microcontroller | NUC100LE3AN |
|---|---|
| Processor Architecture | ARM Cortex-M0 32-BIT MICROCONTROLLER |
The kit includes the NuTiny-EVB-100 evaluation board and the Nu-Link-Me Debug Adaptor.
No, users do not need other additional ICE or debug equipment because the kit includes a built-in debug adapter.
