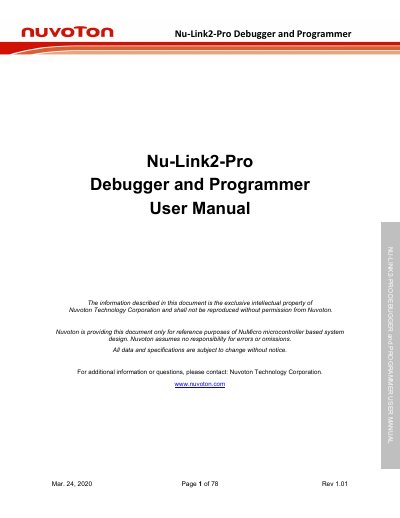

Nuvoton Nu-Link2-Pro Debugger and Programmer User Manual

Nu-Link2-Pro Debugger and Programmer User Manual, introduces the function, usage and connection method of Nu-Link2-Pro Debugger and Programmer.

Brand: Nuvoton
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 78
File format: PDF
File size: 6.2 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: E1574EBB5B99A0AF9885D84D268F4DEF
PDF: Nuvoton Nu-Link2-Pro Debugger and Programmer User Manual PDF

About this manual

The Nuvoton Nu-Link2-Pro is a debugger and programmer designed for development boards. It supports various interfaces including SWD, Bridge (UART, I2C, SPI, RS-485, CAN BUS, PWM, ADC, GPIO), and ETM. The device allows for online and offline programming of Integrated Circuit Programming (ICP) and In-System Programming (ISP).

What's inside

Introduction
Getting Started
Connecting the Nu-Link2-Pro
Debugging
Programming
Installation and Setup
Operating Current
Automatic IC Programming System

Specifications

SWD MO Voltage	1.8 V, 3.3 V, 5.0 V
Debug via SWD	Supported
Online ICP Programming	Supported
Upgrade Online ISP	Supported

Frequently asked questions

Can the Nu-Link2-Pro be connected to an automatic IC programming system?

Yes, the Nu-Link2-Pro can be connected to an automatic IC programming system through the Control Bus.

Does the Nu-Link2-Pro support UART interface for ISP update?

No, the Nu-Link2-Me only supports UART interface for ISP update, while the Nu-Link2-Pro supports multiple interfaces.
