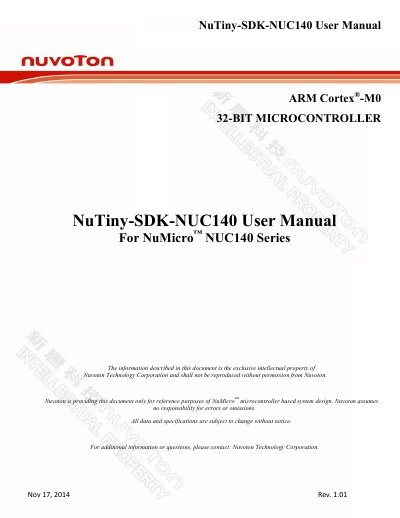

Nuvoton NuTiny-SDK-NUC140 User Manual

This document introduces the user manual of NuTiny-SDK-NUC140, including hardware connection, software installation and usage examples.

Brand: Nuvoton
Category: microcontrollers
Document type: User Manual
Language: English
Pages: 18
File format: PDF
File size: 1.7 MB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 3E4AC77D0B45E4E087C362B44DA17F18
PDF: Nuvoton NuTiny-SDK-NUC140 User Manual PDF

About this manual

The NuTiny-SDK-NUC140 is a specific development tool for the NuMicro NUC140 series of ARM Cortex-M0 microcontrollers. It consists of the NuTiny-EVB-NUC140 evaluation board and the Nu-Link-Me debug adapter, allowing users to develop and verify application programs without additional ICE or debug equipment. The evaluation board features an on-board NUC140VE3AN chip and provides an extended connector for LQFP-100 pin access.

What's inside

Overview
NuTiny-SDK-NUC140 Introduction
Jumper Description
Pin Assignment for Extended Connector
PCB Placement
How to Start on Keil uVision IDE
How to Start on IAR Embedded Workbench
Download NuMicro Family Related Files

Frequently asked questions

What microcontroller does the NuTiny-SDK-NUC140 use as its target?

The SDK uses the NUC140VE3AN as the target microcontroller.

What is the function of the Nu-Link-Me component in this kit?

It connects your PC's USB port to the target system via a Serial Wired Debug Port.

What happens when you run the Smpl_NuTiny-NUC140 example program?

The PA.11 LED will toggle on the NuTiny-EVB-NUC140 board.
