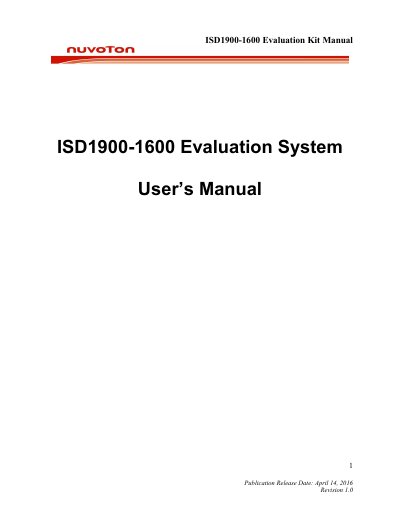

ISD1900-1600 Evaluation System User’s Manual provides instructions for using the ISD1900-1600 evaluation system. The system can be used for evaluating and programming ISD1900 series SOIC-28 pin device or ISD1600 series SOIC-16 pin devices.
The ISD1900-1600 Evaluation System consists of an evaluation board (ISD-ES1900_USB_PROG) and a GUI software application (ISD-VPE1900-1600). The system is designed to evaluate and program ISD1900 series SOIC-28 pin devices and ISD1600 series SOIC-16 pin devices. It operates in two modes: standalone mode for direct recording and playback of ISD1900, and USB mode for using the GUI software to program both ISD1900 and ISD1600 devices.
| Supported Devices | ISD1900 series SOIC-28 pin device or ISD1600 series SOIC-16 pin device |
|---|---|
| Operating Modes | Standalone mode or USB mode |
| Standalone Mode Limitation | For ISD1900 only |
| USB Mode Compatibility | For ISD1900 and ISD1600 |
| Evaluation Board Model | ISD-ES1900_USB_PROG |
Standalone mode is used for ISD1900 only and allows direct recording and playback using push buttons.
You can select the device type by clicking the 'Device' drop down menu in the software interface.
The Discharge button is used to fully discharge the ISD1900 device, which is required when switching between DIRECT mode and ADDRESS mode.
