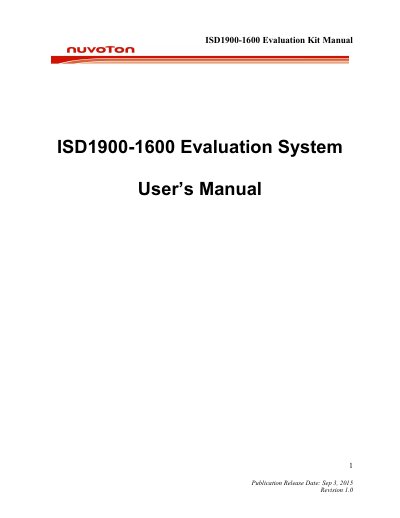

Nuvoton ISD1900-1600 Evaluation Kit User's Manual

ISD1900-1600 evaluation system is a GUI-based Windows application system. It can be used for evaluating and programming ISD1900 series SOIC-28 pin device or ISD1600 series SOIC-16 pin devices.

Brand: Nuvoton
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 801 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: BFCEC711F13571E44F3C934B883FA846
PDF: Nuvoton ISD1900-1600 Evaluation Kit User's Manual PDF

About this manual

The ISD1900-1600 Evaluation System is a kit consisting of an evaluation board (ISD-ES1900_USB_PROG) and GUI software. It allows users to evaluate and program ISD1900 series SOIC-28 pin devices or ISD1600 series SOIC-16 pin devices.

What's inside

Board Overview
Board Configuration
Standalone Operation
Operation Under GUI
ISD-VPE1900-1600 overview

Frequently asked questions

Which devices can this evaluation system program?

The system is designed to evaluate and program ISD1900 series SOIC-28 pin devices or ISD1600 series SOIC-16 pin devices.

How many messages can be recorded on the ISD1900?

The board includes eight push buttons labeled M1 through M8 for recording messages.

What happens if the device is not fully discharged before powering on?

Powering on the device without fully discharging it cannot guarantee that the DIRECT mode is set up successfully.
