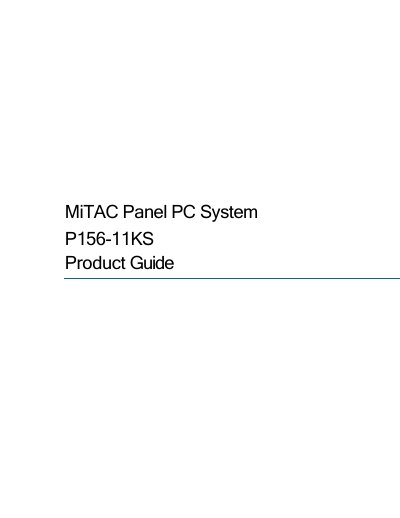

MiTAC P156-11KS Panel PC Product Guide

This product is a 15.6-inch industrial panel PC that uses the 7th generation Intel Core processor, supports 32GB of memory, and supports 4G/LTE networks. Support Windows 10 operating system.

Brand: Mitac
Category: Desktops
Document type: User Manual
Language: English
Pages: 48
File format: PDF
File size: 1.7 MB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: F3B8CC0A330BC8F88B52B042E64F2030
PDF: MiTAC P156-11KS Panel PC Product Guide PDF

About this manual

This document serves as a product guide for the MiTAC P156-11KS Panel PC. It details the hardware specifications, including the Intel Kaby Lake processor options, DDR4 memory support up to 32GB, and various connectivity ports such as HDMI, DisplayPort, and multiple USB 3.0 interfaces. The device features a 15.6-inch TFT-LCD with a True-flat 10-point touch screen.

What's inside

Front View
Bottom View
Mechanical Dimension
Product Specifications
Quick Installation Guide
BIOS Setup

Specifications

Display Type	15.6" TFT-LCD
Max Resolution	1920 x 1080
Touch Screen Type	True-flat 10 points
Power Input DC-in	8~24V

Frequently asked questions

What are the mounting options?

The device supports VESA 75/100mm and Panel Mount configurations.

What is the maximum resolution of the P156-11KS display?

The maximum resolution is 1920 x 1080.

What is the required DC input voltage range for the power adapter?

The power input requires a DC voltage between 8 and 24 volts.

What is the specified torque for installing the rear cover screws?

The specified torque is 4.5 +/-0.5 Kgf-cm.
