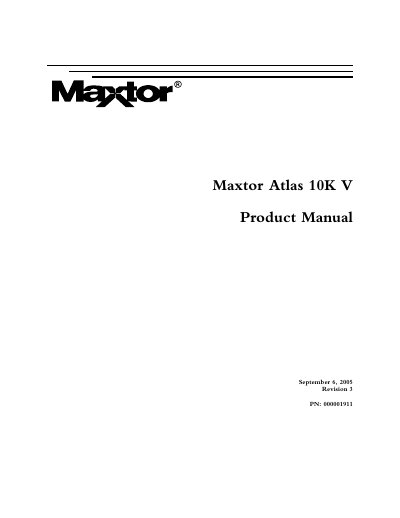

This document is the product manual of Maxtor Atlas 10K V.
The Maxtor Atlas 10K V is a hard disk drive designed for OEM engineers and systems integrators. This manual covers the technical information required for the installation and use of the drive, including safety precautions, handling guidelines, and unpacking instructions. It is important to follow the outlined precautions to prevent product failure and damage.
The document details the hardware requirements, regulatory compliance standards, and specific installation procedures for various connector versions, including 68-Pin Wide SCSI and 80-Pin SCA-2 connectors. It also provides comprehensive specifications regarding capacity, data transfer rates, timing, acoustics, mechanical dimensions, and environmental conditions.
| Product Type | Hard Disk Drive |
|---|---|
| Model Number | Atlas 10K V |
| Document Revision | Revision 3 |
| Publication Number | 000001911 |
| Date | September 6, 2005 |
| FCC Class | Class B |
| RoHS Compliance | Model 8JXXXXX compliant; Model 8DXXXXX non-compliant |
This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor hard drives.
Drive repair should be performed only at an authorized repair center.
Before unpacking, take all proper electro-static discharge (ESD) precautions, including personnel and equipment grounding.
