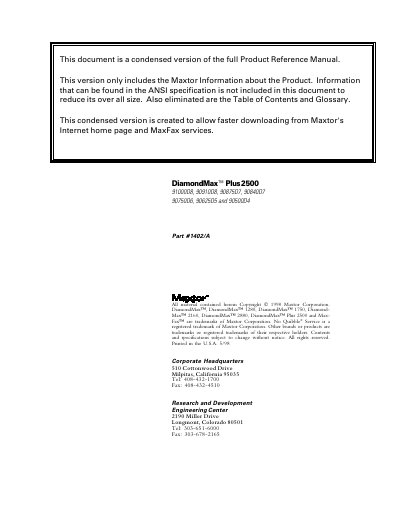

This document is a condensed version of the full Product Reference Manual for the Maxtor DiamondMax™ Plus 2500 AT hard disk drives. It provides technical information about the products.
This document serves as a condensed technical reference manual for the Maxtor DiamondMax™ Plus 2500 series of AT-compatible hard disk drives. It is specifically designed for OEM engineers and systems integrators, providing essential information regarding product description, installation procedures, and interface commands. The manual notes that it excludes full ANSI specifications to reduce file size but covers all necessary technical details found in the product reference.
You must take electro-static discharge (ESD) precautions, allow the drive to reach room temperature, and never drop, jar, or bump it.
You must never switch DC power onto the drive by plugging an electrically live DC source cable into the drive's connector.
The drives are 1-inch high and 3.5-inch diameter.
