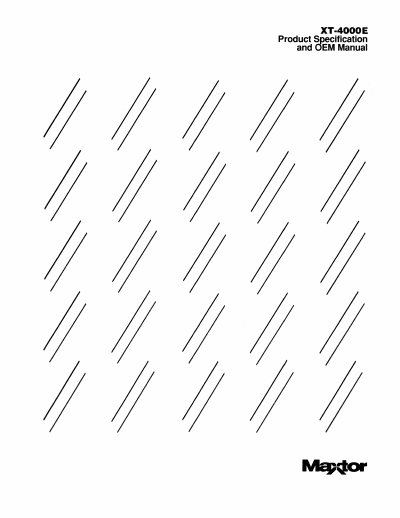

This is a product manual that introduces the features and characteristics of the XT-4000E series hard drives.
The Maxtor XT-4000E is a high-performance disk drive designed for use in computer systems. This manual serves as both a product specification sheet and an OEM guide, detailing performance metrics such as capacity (up to 384.53 Mbytes formatted), transfer rates of 10.0 Mbits/sec, and seek times ranging from 2.5 to 34 milliseconds depending on the specific model variant.
The document covers extensive technical information including functional operation sequences, electrical interface definitions for control and data lines, physical mounting specifications, and jumper configurations. It also addresses reliability standards, error rates, and regulatory approvals such as UL, CSA, VDE, and IEC compliance.
| Transfer Rate | 10.0 Mbits/sec |
|---|---|
| Max Seek Time (Full Stroke) | 34 msec |
| MTBF | 30,000 hours |
Maxtor warrants the XT-4000E Family of disk drives against defects in materials and workmanship for a period of twelve months.
The drive satisfies UL, CSA, VDE, and IEC safety regulations.
