Maxtor XT-8760E Hard Drive Datasheet

Technical specification and configuration guide for the Maxtor XT-8760E ESDI hard drive, covering capacity, performance, jumper settings, and installation.

Brand: Maxtor
Category: Hard disk
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 34 KB
Published: 14 October, 2026
Updated: 14 October, 2026
MD5 checksum: AA2EE0407DC6CF95022B1AA7D3274FD9
PDF: Maxtor XT-8760E Hard Drive Datasheet PDF

About this manual

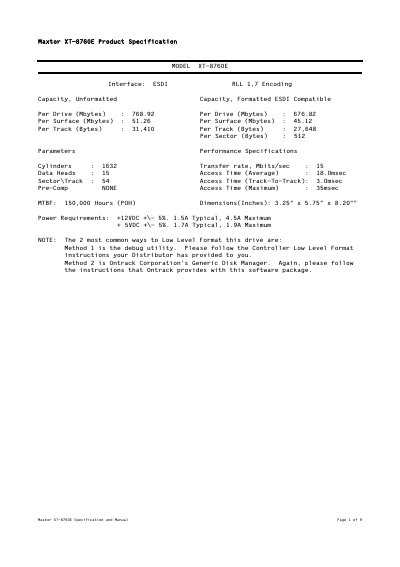

This document provides detailed technical specifications for the Maxtor XT-8760E hard drive, which utilizes an ESDI interface. Key performance metrics include a formatted capacity of 676.82 Mbytes per drive, an average access time of 18.0 msec, and a transfer rate of 15 Mbits/sec.

What's inside

Performance Specifications
Jumper Settings
Drive Address Selection
Model Selection
Installation Requirements

Specifications

Interface	ESDI
Formatted Capacity	676.82 Mbytes per drive
Transfer Rate	15 Mbits/sec
Average Access Time	18.0 msec
MTBF	150,000 Hours
Dimensions	3.25" x 5.75" x 8.20"

Frequently asked questions

How do I select the drive address?

Configure each drive with a unique address by installing the jumper plug in the appropriate location (DS1-DS7).

What happens if I install jumper JP14?

Installing jumper JP14 write protects the drive, allowing only read operations.

How does jumper JP6 affect spindle motor spinup?

If JP6 is installed, the drive spins up automatically as soon as power is applied.
