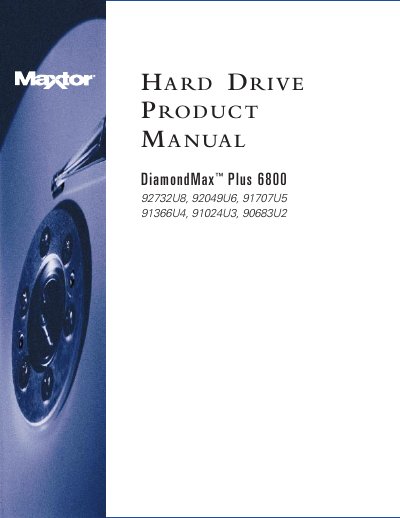

Maxtor DiamondMax Plus 6800 Hard Disk Drive Product Manual

This is a product manual for the Maxtor DiamondMax™ Plus 6800 AT hard disk drive. It introduces the features and characteristics of the product.

Brand: Maxtor
Category: Hard disk
Document type: User Manual
Language: English
Pages: 71
File format: PDF
File size: 992 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 1B36C641E574860D6F2586C652912DD2
PDF: Maxtor DiamondMax Plus 6800 Hard Disk Drive Product Manual PDF

About this manual

This manual provides technical information for OEM engineers and systems integrators regarding the installation and use of Maxtor DiamondMax Plus 6800 hard disk drives. It includes sections on product description, specifications, handling, installation, interface details, and service support.

What's inside

Introduction
Product Description
Product Specifications
Handling and Installation
AT Interface Description
Host Software Interface
Interface Commands
Service and Support

Specifications

RPM	7,200
Copyright Year	1999

Frequently asked questions

What precautions must be taken before unpacking or handling the drive?

You must take electro-static discharge (ESD) precautions, allow the drive to reach room temperature, and never drop, jar, or bump it.

What should be done immediately after removing a drive from its shipping container?

The drive must be secured through its mounting holes within a chassis or stored on a padded, grounded, antistatic surface.

How should DC power be switched onto the drive?

You must never switch DC power on by plugging an electrically live DC source cable into the connector.
