The Ubiquiti Networks® UniFi® 802.11ac Wave 2 Enterprise Access Point is a compact enterprise-grade AP that supports 802.11ac Wave 2 and 11ac 3x3 MU-MIMO, with speeds up to 450Mbps.

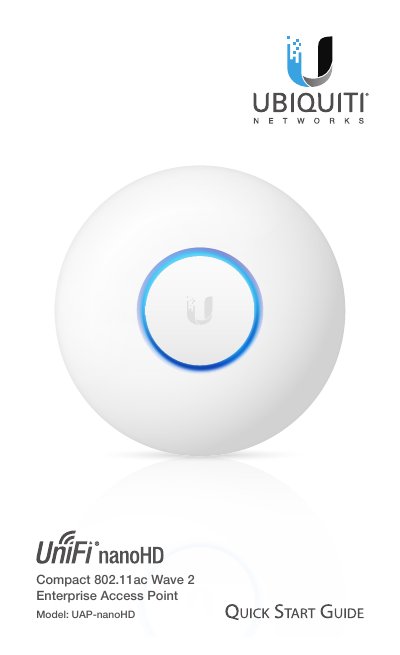

The document is a quick start guide for the Ubiquiti Networks UniFi UAP-nanoHD, an 802.11ac Wave 2 enterprise access point. It details package contents including mounting hardware and power adapters, along with specific installation requirements such as CAT5 cabling and controller software versions.
| Dimensions | 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29") |
|---|---|
| Weight With Mounting Kits | 300 g (10.6 oz) |
| Max Power Consumption | 10.5W |
| Operating Frequency | 2.4 GHz, 5 GHz |
| Max TX Power (2.4 GHz) | 23 dBm |
| Antenna Gain (5 GHz) | 3 dBi |
| MIMO Configuration | 2x2 @ 2.4GHz, 4x4 @ 5GHz |
| Radio Rate (5 GHz) | 1733 Mbps |
The UAP-nanoHD requires the UniFi Controller v5.7 or higher.
The device operates between -10 to 70° C (14 to 158° F).
