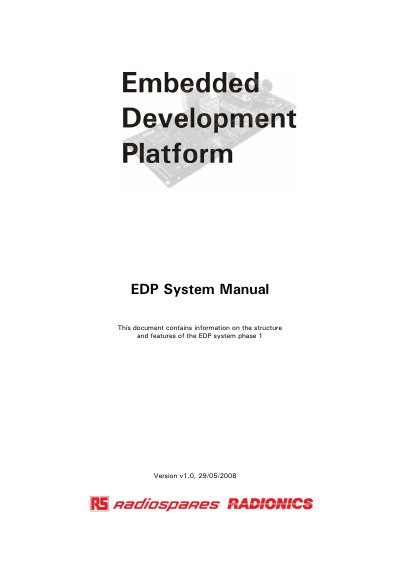

This document introduces the basic concepts and usage of EDP system
The EDP System is a flexible embedded development board designed for industrial controllers, scientific instruments, and datalogging applications. It features an Extended Euro card size motherboard with four identical stations that support various plug-in processor and application modules.
The system utilizes standardized connectors (EDPCON1 and EDPCON2) to provide a unified interface for microcontrollers, including signals for I2C, CAN, SPI, motor control, and memory cards. The platform supports multiple CPU modules from manufacturers like ST Microelectronics and Infineon.
| Motherboard Size | Extended Euro card size (220 x 100 mm) |
|---|---|
| Connector Type | 64-way DIN (RS 381-8696) |
| Connector Pin Count | 240 pins total (140 and 100 pins) |
| I2C Buses Available | Up to three I2C buses |
| CAN Networks Available | Two CAN networks |
Typical applications include industrial controllers, scientific instrument controllers, datalogging, and remote monitoring.
Available processor modules include ST Microelectronics STR912 and Infineon XC167.
The initial starter range includes Analogue Input, Digital Input/Output, Brushed DC Motor Control, and Basic Communications modules.
