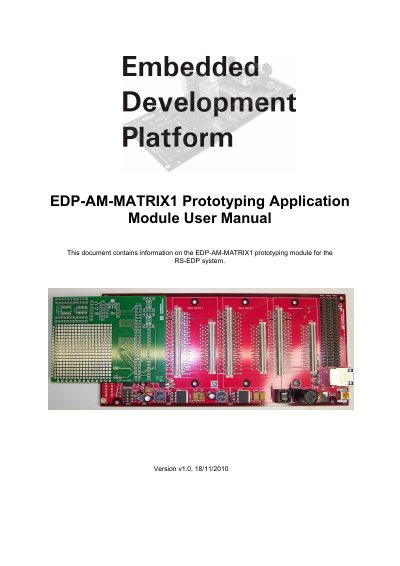

Electrocomponents plc EDP-AM-MATRIX1 Prototyping Application Module User Manual

This document is the user manual of EDP-AM-MATRIX1 prototyping module

Brand: Electrocomponents plc
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 2.2 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 13EC2D88296D9B17E141D3D03E5CB9A4
PDF: Electrocomponents plc EDP-AM-MATRIX1 Prototyping Application Module User Manual PDF

About this manual

This document provides the user manual for the EDP-AM-MATRIX1 prototyping module designed for the RS-EDP modular development platform. The module is a PCB intended to fit both two-slot and four-slot base boards, utilizing the left-hand slot to accommodate additional electronic components for small to medium-sized designs. It features a variety of surface mount and through-hole footprints to support different component packages.

What's inside

Introduction
Features
Prototype Area
Power Supply
Connectivity to the Back Plane
Mapping Aid
Complete Back Plane Signal Listing
Circuit Schematics and Overlay

Specifications

Compatible Base Boards	2 slot and 4 slot base boards
SOT23-3 footprints	2
SOT363-6 footprints	2
SOT223 footprint	1
SOT26-6 footprint	1
TO252 footprint	1
SO8 footprints	3
TSSOP8 footprints	2
TSSOP28 footprint	1
Wide TSSOP28 footprint	1
SO16 footprint	1
Wide SO16 footprint	1
Through plated holes	20 x 19
Connector P103	25x2
Connector P104	17x1

Frequently asked questions

Which base boards is the EDP-AM-MATRIX1 module compatible with?

The module is designed to fit both the two slot and the four slot base boards.

What power supply considerations should be made for the two slot board?

Users should ensure they do not overload the two slot board PSU because it is linear.

What voltage does the Vcc_CM signal provide?

The Vcc_CM signal provides either 3.3V or 5.0V depending on the CPU module fitted.
