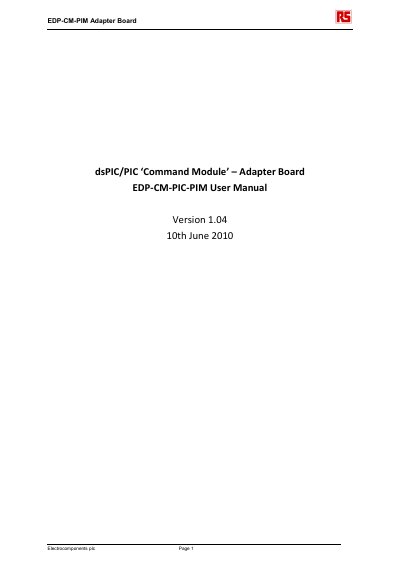

EDP-CM-PIM Adapter Board is a product manual published by Electrocomponents plc. This manual mainly introduces the use of EDP-CM-PIM Adapter Board, MCU mapping, jumper options, zero ohm connections and other content.
The EDP-CM-PIM module is an adapter board designed for the RS-EDP platform to support Microchip's family of devices, including the 8-bit PIC16Cxx, 16-bit dsPIC, and 32-bit PIC32 families. It connects between the RS-EDP baseboard and Microchip PIM modules.
The board is configured as a 'Command Module' that dictates whether the system operates at 3.3V or 5.0V via a link option setting on the Vcc_CM line. The daughter board remaps the I/O of the PIM module onto the backplane of the RS-EDP system, ensuring correct mapping for various devices such as the dsPIC33FJ256MC710 and PIC32Mx4xxFxxxL.
The board supports the 8 bit PIC16Cxx family, through to the 16bit dsPIC family and the new 32bit PIC32 family.
The 'Command Module' dictates whether the whole system is a 3.3V one or a 5.0V one using a link option.
