Electrocomponents EDP-CM-LPC2368 CPU Module User Manual

This manual introduces MCU mapping, solder link options, zero ohm links, software support and other contents of EDP-CM-LPC2368 Command Module

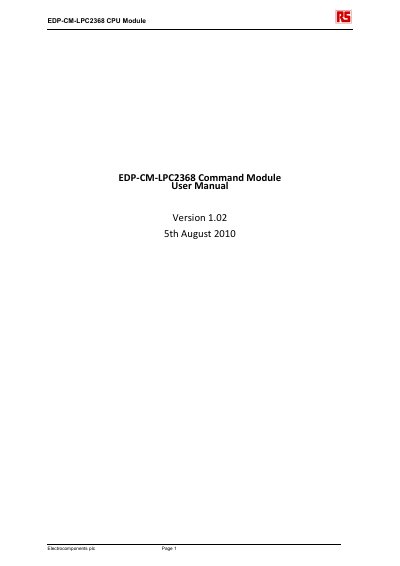

Electrocomponents EDP-CM-LPC2368 CPU Module User Manual - cover page
Brand
Electrocomponents plc
Category
microcontrollers
Document type
User Manual
Language
English
Pages
28
File format
PDF
File size
2.2 MB
Published
15 October, 2023
Updated
15 October, 2023
MD5 checksum
D36AA0A75D86EFE9FC5CCF8C622469ED

About this manual

The RS-EDP platform utilizes NXP microprocessors, specifically the LPC2368 (ARM7), LPC1768 (Cortex M3), LPC1343 (Cortex M3), and LPC1113 (Cortex MO). The Command Module maps the I/O of these MCUs to the system backplane and supports various device types within a single module design.

The document details the pin allocation for the MCU, including JTAG interfaces, USB ports, Ethernet PHY connections, and multiple serial communication lines. It also describes solder link options and zero ohm links used to configure the module's functionality.

What's inside

  • Introduction
  • MCU Mapping
  • Solder Link Options
  • Zero Ohm Links
  • Software Support

Frequently asked questions

What voltage level does the Command Module dictate for the system?

The module dictates whether the whole system is a 3.3V one or a 5.0V one.

What voltage do all these modules use for their microprocessor?

All of these modules use a 3.3V microprocessor.

How many different device types can the Command Module accommodate?

A single Command Module has been designed to accommodate four different device types.
