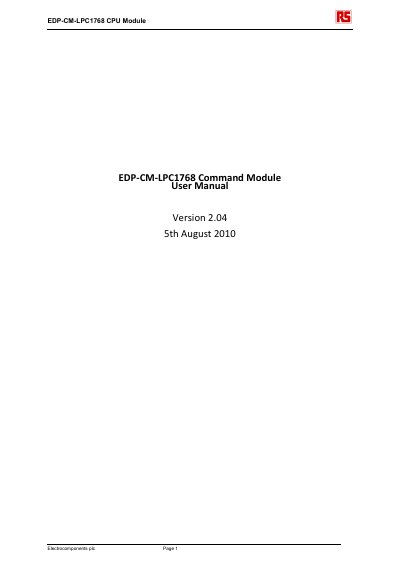

EDP-CM-LPC1768 CPU Module, including MCU mapping, zero ohm links and other information
The RS-EDP platform utilizes a single Command Module (CM) to accommodate various NXP microprocessors, including the LPC1768 (Cortex M3). The EDP-CM-LPC1768 module maps the I/O of this specific MCU to the backplane of the RS-EDP system. It supports 3.3V operation and includes extensive link options for dual-function pins.
| Supported Microprocessor | LPC1768 (Cortex M3) |
|---|---|
| Operating Voltage | 3.3V microprocessor |
The module is designed to accommodate four different device types, including LPC2368, LPC1768, LPC1343, and LPC1113.
The Command Module maps the I/O of the MCU on the board to the backplane of the RS-EDP system.
