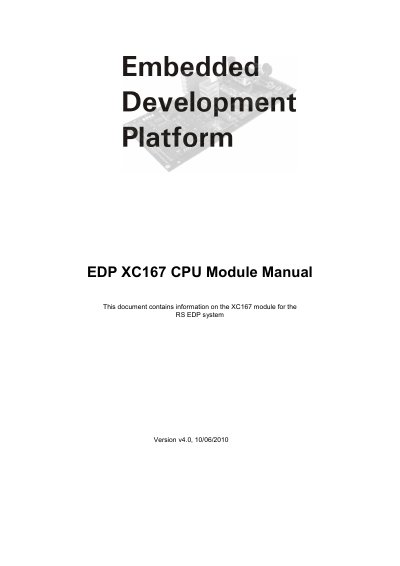

This manual describes the features of the EDP-CM-XC167 CPU module, including the development tools used, pin mapping, and selectable jumpers.
The document provides a comprehensive guide for the XC167 CPU Module used in the RS EDP system. It outlines the recommended development toolchains, specifically Keil uVISION166 and Hitex HiTOP XC, which utilize an integrated USB JTAG interface for programming and debugging without external tools.
Key sections include detailed pin mapping between the MCU and the baseboard connector, a list of resources used by the module on the backplane, and instructions for configuring selectable jumpers and DIL switches. The manual also lists specific hardware features such as the 40MHz CPU, SRAM, Ethernet controller, and various communication interfaces like CAN and I2C.
| CPU Frequency | 40MHz |
|---|---|
| Flash Memory | 256k FLASH |
| SRAM Size | 64kx16 |
| Package Type | 144TQFP pin package |
| Operating Voltage | 5V operation |
The recommended toolchains are Keil uVISION166 with Keil Compiler and Hitex HiTOP XC.
No, the module has a built-in USB wiggler chip that connects via mini USB to assist with programming.
