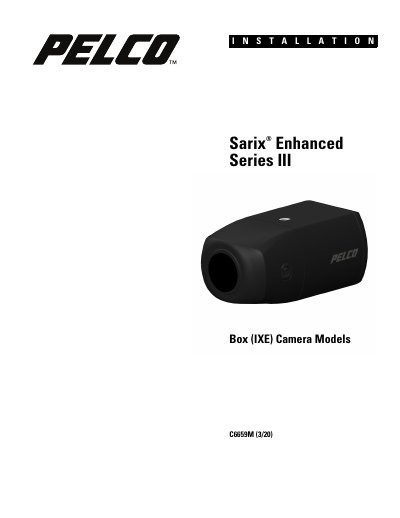

This guide provides installation and initial setup procedures for the Pelco C6659M Sarix Enhanced III box camera, including power requirements, wiring, and…
The document serves as an installation and initial setup manual for the Pelco C6659M Sarix Enhanced Series III Box Camera. It covers important notices regarding regulatory compliance, legal usage of audio/video recording, and open source software licenses. The guide details power source requirements (12Vdc or 24Vac) and provides warnings about electrostatic discharge (ESD).
The manual outlines the physical description of the camera, including status LED indicators, ports for alarm/relay/audio, network connectivity via RJ-45, and connectors for iCS lenses. It lists recommended mounts, lenses, and enclosures compatible with the device. The guide also includes a parts list distinguishing between supplied items (camera, manual) and user-supplied requirements (lens, SD card, cables), along with instructions on accessing the camera's default settings.
| Power Source (DC) | 12Vdc, 2A |
|---|---|
| Power Source (AC) | 24Vac (50/60 Hz), 1.5A |
| Power over Ethernet Standard | IEEE802.3af |
| Compatible Lens Type | standard iCS (Intelligent CS-mount) megapixel lenses |
The product should be supplied by a Listed Power Adapter or DC power source marked Class 2 or L.P.S., rated 12Vdc, 2A, or 24Vac (50/60 Hz), 1.5A.
When used with PoE, the Power Sourcing Equipment (PSE) must comply with IEEE802.3af and Limited Power Source (LPS) according to IEC/EN/UL standards.
A solid red status LED for more than 5 seconds indicates that there is a booting error.
