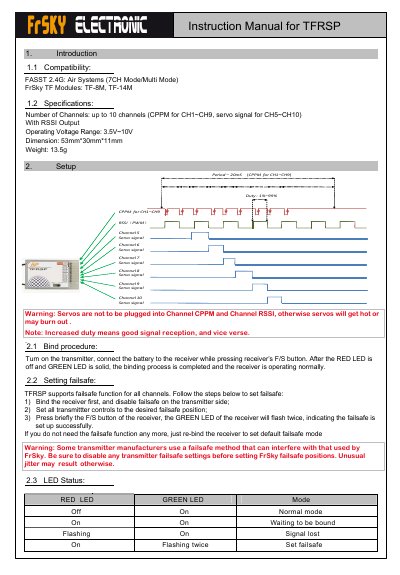

FrSky TFRSP Receiver Instruction Manual

About this manual

The FrSky TFRSP is a receiver supporting up to 10 channels, utilizing CPPM for the first nine channels and servo signals for the remaining ones. It features an RSSI output and operates within a voltage range of 3.5V to 10V, weighing 13.5g with dimensions of 53mm x 30mm x 11mm.

What's inside

• Introduction
• Compatibility
• Specifications
• Setup
• Bind procedure
• Setting failsafe
• LED Status

Specifications

Frequently asked questions

What is the binding procedure for the TFRSP?

Turn on the transmitter, connect the battery to the receiver while pressing the receiver's F/S button until the RED LED is off and the GREEN LED is solid.

How do I set the failsafe on the TFRSP?

Bind the receiver first, set all transmitter controls to the desired failsafe position, then press the receiver's F/S button briefly until the GREEN LED flashes twice.

What does the LED status indicate when the RED LED is flashing?

A flashing RED LED indicates that the receiver has lost the signal.
