The R9M Lite Pro is an upgraded 900MHz Lite module with a high-speed digital interface, up to 1W (500mW LBT) RF power, and a CNC aluminum protective shell that helps dissipate heat when using high RF power. It also supports spectrum analyzer functions and is perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite.
The FrSky R9M Lite Pro is an upgraded 900MHz Lite module designed for high-speed digital interfaces and RF power up to 1W. It features a CNC aluminum protective shell for heat dissipation and supports spectrum analyzer functions via the new ACCESS firmware.

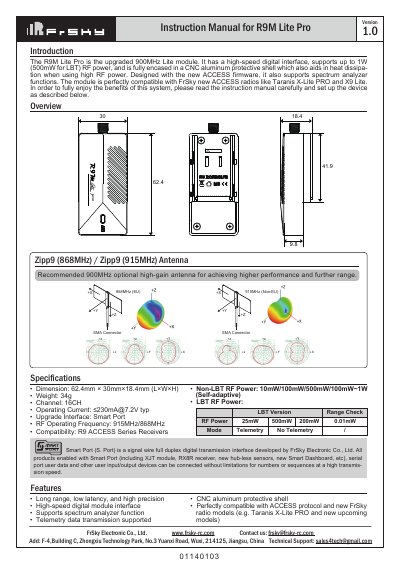

This document provides instructions on performing pre-flight range checks, configuring failsafe modes (No Pulse, Hold, Custom), and registering/binding the module with FrSky ACCESS radios like the Taranis X-Lite PRO.
| RF Power (Non-LBT) | 10mW/100mW/500mW/100mW~1W |
|---|---|
| RF Power (LBT) | 25mW / 500mW / 200mW |
| Operating Current | ≤[email protected] typ |
| Dimensions | 62.4mm × 30mm×18.4mm |
| Weight | 34g |
| Channel Count | 16CH |
A high-gain antenna is recommended to achieve higher performance and further range.
The three failsafe modes are No Pulse, Hold, and Custom.
It is perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite.
