FrSky ASS-100 ADV Airspeed Sensor Instruction Manual

This document is the instruction manual for FrSky ASS-100 ADV Airspeed Sensor, which introduces the functions and usage of the sensor.

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 2.9 MB
Published: 15 October, 2023
Updated: 15 October, 2023
Models: ASS-100 ADV, ASS-100
MD5 checksum: 6899DFA6FF223B5F0CF96EAFCD93A702
PDF: FrSky ASS-100 ADV Airspeed Sensor Instruction Manual PDF

About this manual

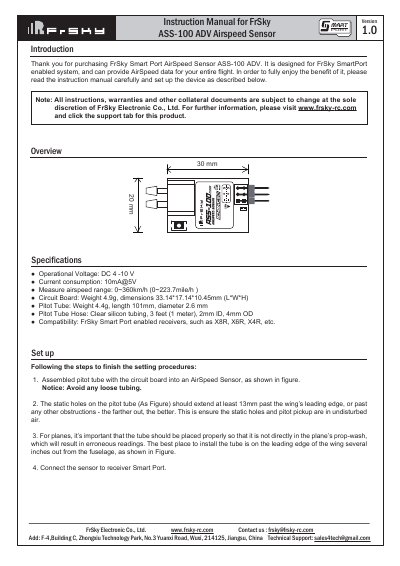

The FrSky ASS-100 ADV is an airspeed sensor designed for use with FrSky SmartPort enabled systems. It measures airspeed data to provide accurate flight information. The device consists of a circuit board and a pitot tube assembly that must be installed correctly on the aircraft's leading edge.

What's inside

Introduction
Assembly Steps
Installation Guidelines
Setup Instructions
Specifications Overview

Specifications

Operational Voltage	DC 4 -10 V
Current consumption	10mA@5V
Measure airspeed range	0~360km/h (0~223.7mile/h )
Circuit Board Weight	4.9g
Pitot Tube Weight	4.4g
Default Physical ID	09

Frequently asked questions

What are the installation requirements for the static holes?

The static holes on the pitot tube should extend at least 13mm past the wing's leading edge or any other obstructions.

Where is the best place to install the sensor tube?

The best place is on the leading edge of the wing several inches out from the fuselage, avoiding prop-wash.

Which receivers are compatible with this sensor?

It is compatible with FrSky Smart Port enabled receivers such as X8R, X6R, and X4R.

Download PDF (2.9 MB)
