Introduces the compatibility, specifications, features and other information of Frsky D8R-II plus remote controller.

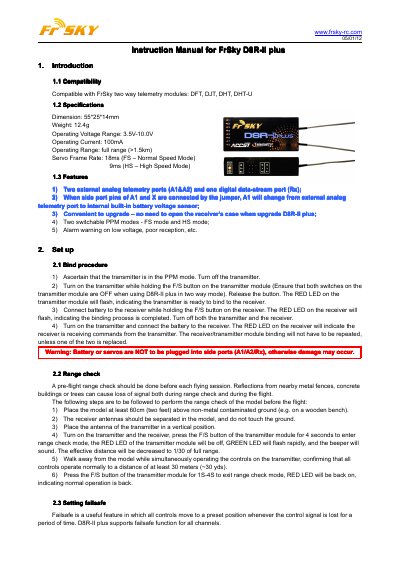

The document serves as an instruction manual for the FrSky D8R-II plus receiver. It details compatibility with various telemetry modules (DFT, DJT, DHT, DHT-U) and lists key specifications such as dimensions, weight, operating voltage range, and servo frame rates.
The guide covers essential setup procedures including the binding process between the transmitter and receiver, how to perform a pre-flight range check, and configuring failsafe positions for all channels. It also explains how to switch between FS (Normal Speed) and HS (High Speed) PPM modes and defines the pin functions for external analog telemetry ports.
| Dimension | 55*25*14mm |
|---|---|
| Weight | 12.4g |
| Operating Voltage Range | 3.5V-10.0V |
| Operating Current | 100mA |
| Servo Frame Rate (FS Mode) | 18ms |
| Servo Frame Rate (HS Mode) | 9ms |
It is compatible with FrSky two way telemetry modules: DFT, DJT, DHT, and DHT-U.
Turn the transmitter off, connect the battery to the receiver, press the F/S button for 6 seconds and release; the mode alternates each time.
The default behavior holds the last position before signal loss, which risks the model flying away or causing injury.
