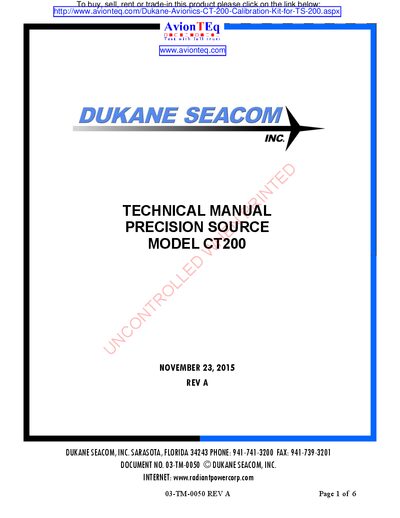

This document is a manual for the Precision Source Model CT200 manufactured by Dukane Seacom, Inc.
This manual describes the description, operation, and maintenance of the Precision Source Model CT200 manufactured by Dukane. It includes general information, specifications, setup instructions, and safety cautions.
The document details the CT200 setup, connection to TS200 test sets, calibration procedures, and warranty terms. It also lists parts, dimensions, and weight of the unit.
| Size | 5.1" x 6.4" x 2.3" (13.0 cm x 16.3 cm x 5.8 cm) |
|---|---|
| Weight | 23.6 ounces (670 grams) |
| Calibration interval | Every 2 years and 3 months |
Connect the Test Set Probe lead to the jack labeled 3V, the Battery Adapter lead to the jack labeled BATT, and the DC power supply to the jack marked DC Power.
Connect the test leads from the CT200 to the TS200, turn on the CT200, set the LOW/NORMAL switch to NORMAL, turn on the TS200, and the display should read 3.00 V.
