The AD9361 is a high-performance, highly integrated RF Agile Transceiver™ designed for 3G and 4G base station applications. Its programmability and wideband capability make it an ideal choice for a variety of transceiver applications. The device combines an RF front end with a flexible mixed-signal baseband section, integrates a frequency synthesizer, and provides a configurable digital interface for the processor, simplifying design integration. The AD9361 operates in the frequency range of 70 MHz to 6.0 GHz, covering a wide range of licensed and unlicensed bands, with supported channel bandwidth ranging from less than 200 kHz to 56 MHz.

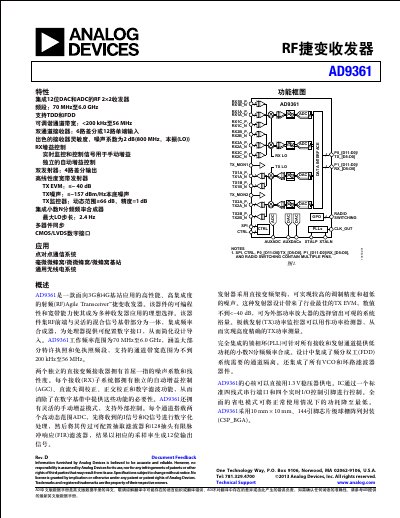

The document describes the AD9361, a highly integrated RF Agile Transceiver designed for 3G and 4G base station applications. It features programmable bandwidth capabilities ranging from less than 200 kHz to 56 MHz and operates within a frequency range of 70 MHz to 6.0 GHz.
The device integrates an RF front-end with flexible mixed-signal baseband sections and frequency synthesizers, providing configurable digital interfaces for processors. It includes dual-channel receivers with automatic gain control (AGC) and dual transmitters supporting various modulation schemes with high linearity. This manual is written in Chinese.
| Frequency Range | 70 MHz to 6.0 GHz |
|---|---|
| Channel Bandwidth | <200 kHz to 56 MHz |
| Noise Figure (800 MHz) | 2 dB |
| Modulation Accuracy (EVM) TX | -40 dB |
| Package Type | 10 mm x 10 mm CSP_BGA |
| Max LO Step Size | 2.4 Hz |
It is suitable for point-to-point communication systems, femto/pico/micro cellular base stations, and general radio systems.
Yes, it supports both Time Division Duplex (TDD) and Frequency Division Duplex (FDD).
The maximum output power is 8 dBm into a 50 ohm load.
