The high-speed general-purpose evaluation board (EB-O5/6RT-1Z) from ADI is designed to help customers quickly complete prototype designs of new operational amplifier circuits, reducing design time. The evaluation board is suitable for almost all ADI operational amplifiers and supports various configurations and applications.

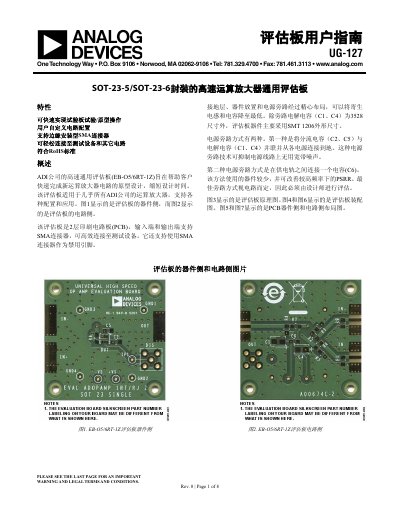

The Analog Devices EB-O5/6RT-1Z is a two-layer printed circuit board (PCB) evaluation board designed to help customers quickly prototype new operational amplifier circuits. It supports almost all ADI operational amplifiers and features SMA connectors for efficient connection to test equipment. The board includes a carefully laid out ground plane and power bypassing to minimize parasitic inductance and capacitance. This manual is written in Chinese.
| Package Type | SOT-23-5/SOT-23-6 |
|---|---|
| PCB Layers | 2-layer |
| Connector Type | SMA |
| Bypass Capacitor Size | 3528 |
| Component Size | SMT 1206 |
The board is designed to help customers quickly complete prototype designs for new operational amplifier circuits.
The input and output terminals support SMA connectors for efficient connection to test equipment.
The board is a 2-layer printed circuit board (PCB) with a ground layer and specific component placement.
