Extech EX830 is a true RMS 1000A clamp meter with an infrared thermometer. This product can measure AC/DC voltage, current, resistance, capacitance, frequency, diode testing, continuity, and temperature with a non-contact infrared feature. It comes with comprehensive testing and calibration for reliable service.

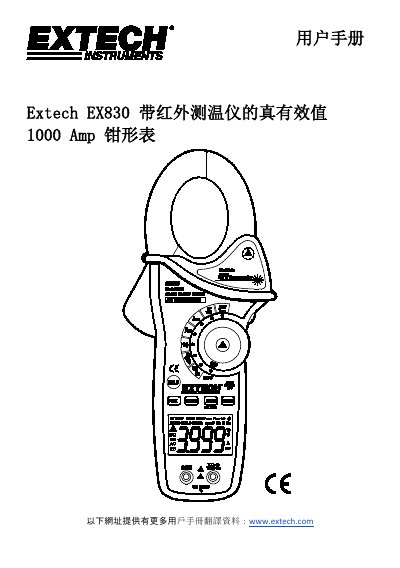

This document is the user manual for the Extech EX830, a True RMS 1000A clamp meter equipped with an infrared thermometer. The device is designed to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, diode testing, continuity, K-type thermocouple temperature, and non-contact infrared temperature. It includes comprehensive testing and calibration to ensure reliable service. This manual is written in Chinese.
| Current Range | 1000A |
|---|---|
| Voltage Range | 600V DC/AC |
| Resistance/Capacitance/Freq Limit | 250V DC/AC |
| K-Type Thermocouple Range | -20 to 250°C |
| IR Laser Safety | Low intensity visible laser |
The device can measure up to 1000A of AC/DC current.
The meter is rated for a maximum input of 600V DC/AC.
The provided thermocouple probe has a temperature range of -20 to 250°C.
Press the DC ZERO button with no conductor in the clamp jaws to store the bias value.
