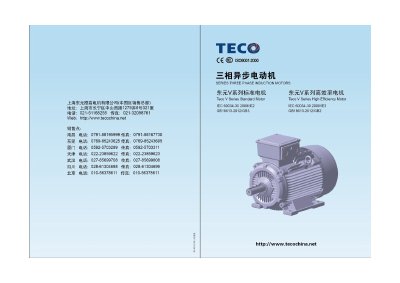

The TECO V Series includes standard and high‑efficiency three‑phase induction motors ranging from 0.55 kW to 315 kW. Designed to meet IEC 60034‑30 standards, the series offers options for 380 V (or other voltages) and 50 Hz/60 Hz operation, with frame sizes from 80 mm to 355 mm.
The datasheet provides detailed technical parameters, vibration limits, mounting options, and upgrade instructions. It also outlines application guidelines for pumps, blowers, and other inverter‑driven loads, as well as bearing temperature monitoring and lubrication recommendations.
| Rated voltage | 380 V or other voltage |
|---|---|
| Rated frequency | 50 Hz or 60 Hz |
| Output range | 0.55 kW – 315 kW |
| Frame sizes | 80 mm – 355 mm (80~355L) |
| Cooling method | Self‑external fan, surface cooling |
| Stator insulation class | Class F |
| Maximum temperature rise | Not to exceed 80 °C |
The rated voltage is 380 V, but other voltages are also available.
Frames range from 80 mm to 355 mm, designated as 80~355L.
The temperature rise must not exceed 80 °C.
They use a self‑external fan with surface cooling.
