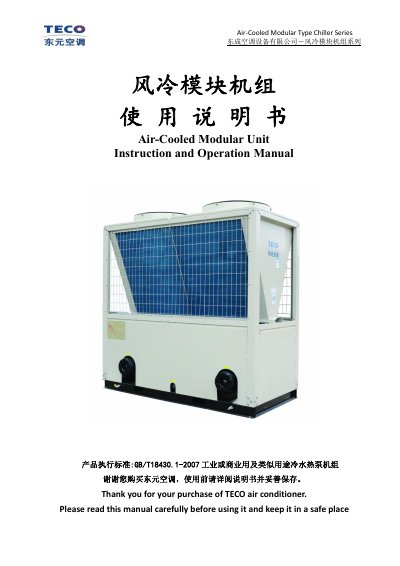

The TECO Air‑Cooled Modular Unit Series manual provides product overview, technical specifications, installation, controller operation, maintenance and…
The Air‑Cooled Modular Unit Series is a flexible, modular chiller that can be assembled from 1 to 15 units to meet varying load requirements. It features a high‑efficiency scroll compressor, integrated micro‑controller with multi‑level protection, optional electric heating, and intelligent control with strong anti‑interference capability.
This manual covers product specifications, installation procedures, electrical wiring, water system setup, controller interface, operation settings, maintenance, troubleshooting, safety precautions, packing list, and record‑keeping forms. This manual is written in Chinese.
| Refrigerant | R410A |
|---|---|
| Compressor type | Full‑density scroll |
| Supply voltage | 380 V‑3‑50 Hz |
| Dimensions (H×W×D) per module | 2020 mm×2000 mm×1000 mm (small) – 2300 mm×2250 mm×1200 mm (large) |
The units use R410A refrigerant.
The cooling water outlet temperature is 5 °C to 15 °C.
Up to 15 modules can be combined according to load requirements.
The unit must be powered off and disconnected from the power source, properly grounded, and only serviced with correct fuses; do not insert objects into the outlet or operate with wet hands.
