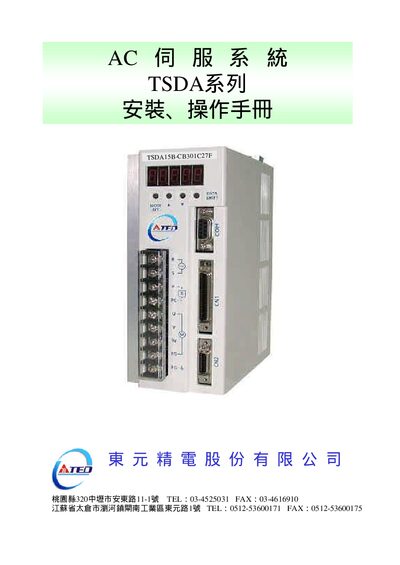

TECO TSDA15B-CB301C27F Servo Drive User Manual

About this manual

This manual covers the TSDA series servo drives, focusing on the TSDA15B-CB301C27F model. It includes safety notices, model identification, and a comprehensive guide to installing the drive and associated motor.

Key sections detail environmental requirements, mounting directions, wiring diagrams, panel operation, auxiliary functions, user settings, data monitoring, error reporting, RS‑232 communication, and adjustment procedures. Technical data such as current capacity, power ratings, and motor specifications are listed in the appendix. This manual is written in Chinese.

What's inside

• Safety Notices
• Model Identification
• Installation Environment
• Mounting and Direction
• Wiring and Terminal Connections
• Panel Operation
• Auxiliary Functions
• User Settings
• Data Monitoring
• Error Reporting

Specifications

Frequently asked questions

What is the current capacity of the TSDA15B model?

The TSDA15B model has a current capacity of 15 A.

How is RS‑232 communication configured?

RS‑232 communication wiring and protocol details are described in the “RS‑232 communication” section of the manual.
