L510 Series Variable Frequency Drive User Manual, which provides detailed instructions on the safe use, installation, wiring, parameter setting, fault diagnosis and maintenance of variable frequency drives.

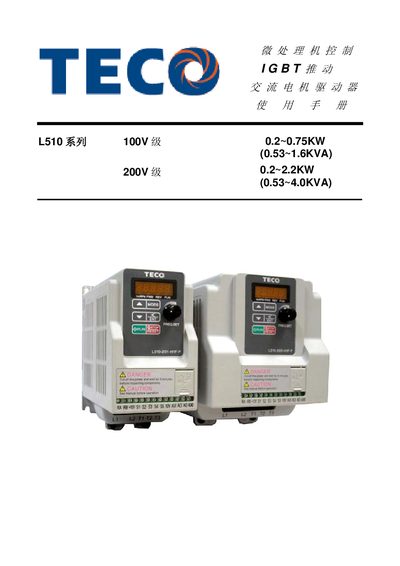

This manual covers the safe handling, installation, and operation of the TECO L510 variable‑frequency drive. It includes detailed safety warnings, wiring diagrams for both single‑phase and three‑phase connections, and instructions for mounting the unit on non‑flammable surfaces.
The document also lists the device specifications, explains the function of the control panel and LEDs, provides a full parameter‑setting table, and offers troubleshooting procedures for common fault codes and abnormal conditions. This manual is written in Chinese.
The manual stresses that the inverter is a precision device and that users must follow all safety warnings to protect personnel and equipment before installation.
The parameter setting table is provided in Appendix 1 titled "L510 変頻器参数役定表".
