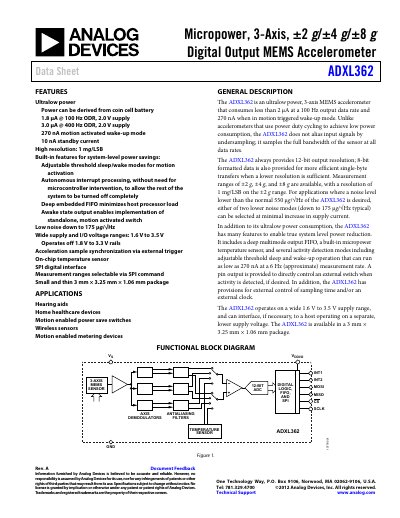

This document describes the features and characteristics of the ADXL362 model MEMS accelerometer, including ultralow power consumption, power supply from coin cell battery, high resolution, and built-in power saving features.
The ADXL362 is an ultra low power, 3-axis MEMS accelerometer that consumes less than 2 µA at a 100 Hz output data rate. It features selectable measurement ranges of ±2 g, ±4 g, and ±8 g, with a resolution of 1 mg/LSB on the ±2 g range. The device includes a deep multimode output FIFO, a built-in micropower temperature sensor, and several activity detection modes to enable system-level power reduction.
| Measurement Range | ±2, ±4, ±8 g |
|---|---|
| Output Resolution | 12 Bits |
| Supply Voltage Range | 1.6 V to 3.5 V |
| Operating Temperature Range | -40°C to +85°C |
| Standby Current | 10 nA |
| Package Dimensions | 3 mm × 3.25 mm × 1.06 mm |
The ADXL362 always provides 12-bit output resolution.
The available measurement ranges are ±2 g, ±4 g, and ±8 g.
Yes, the ADXL362 has a built-in micropower temperature sensor.
