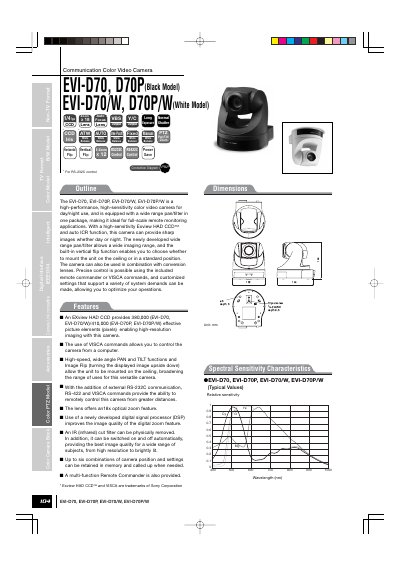

The EVI-D70 series is a high-performance, high-sensitivity color video camera for day/night monitoring applications. It is equipped with a wide range pan/tilt unit for full-scale remote monitoring. The camera features a high-sensitivity Exview HAD CCD sensor and auto ICR function, providing sharp images in both day and night conditions. The newly developed wide range pan/tilt unit allows for a wide imaging range, and the built-in vertical flip function enables flexible mounting options. The camera can also be used with conversion lenses.
This manual provides operational instructions for the Sony EVI-D70, EVI-D70P, EVI-D70/W, and EVI-D70P/W color video cameras. These high-sensitivity cameras are designed for day/night use and feature a built-in pan/tilt mechanism, making them suitable for full-scale remote monitoring applications.
| Image device | 1/4 type EXview HAD CCD |
|---|---|
| Effective picture elements | 380,000 (EVI-D70, EVI-D70/W)/410,000 (EVI-D70P, EVI-D70P/W) |
| Lens | 18x zoom, f=4.1 mm (wide) to 73.8 mm (tele) |
| Minimum illumination | 1 lx (F1.4) (50 IRE) |
| Operating temperature | 0 to 40 ºC |
| Mass | 950 g |
The minimum illumination is 1 lx at F1.4 with 50 IRE.
Up to six combinations of camera position and settings can be retained in memory.
The maximum speed for the pan function is 100 degrees per second.
