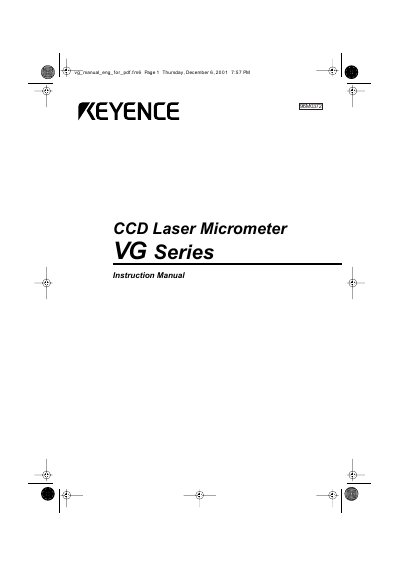

This document is the instruction manual for the CCD Laser Micrometer VG Series. It includes three sections: Preparation for Measurement, Operations and Functions, and Specifications and Characteristics. The document provides information on the configuration of the VG system package.
This document serves as an instruction manual for the KEYENCE VG Series CCD Laser Micrometer. It details preparation steps including safety precautions regarding Class II laser radiation, correct usage hints such as avoiding vibration, and part identification for both the sensor head and controller.
The guide covers operational procedures for setting measurement modes, tolerance limits, averaging functions, and analog outputs. It also includes sections on troubleshooting error messages and provides technical specifications regarding measuring area, accuracy, response times, and dimensions.
| Resolution | 5 µm |
|---|---|
| Sampling Rate | 780 c/s |
| Measuring Area | 35 x 300 mm |
| Laser Class (FDA) | Class II |
| Laser Wavelength | 670nm |
You must adjust light quantity and start measurement at least 30 minutes after turning on the power.
The cable between the controller and sensor head can be extended up to 10 m using extension cables.
