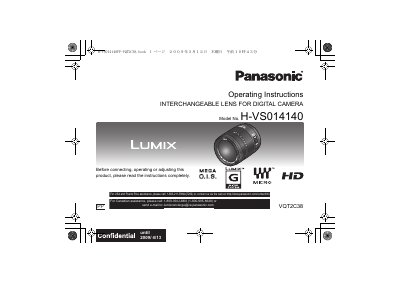

This document is the operating instructions for the Panasonic H-VS014140 lens. It mainly introduces information about connecting, operating, and maintaining the lens.
This document provides operating instructions for the Panasonic H-VS014140 interchangeable lens, which is compatible with digital cameras using the Micro Four Thirds System mount. It details safety precautions, lens care, and the proper procedures for attaching and detaching the lens, lens hood, and lens caps.
| Focal length | 14mm to 140mm (35mm equivalent: 28mm to 280mm) |
|---|---|
| Aperture range | F4.0 (Wide) to F5.8 (Telephoto) |
| Minimum aperture value | F22 |
| Lens structure | 17 elements in 13 groups |
| Minimum focusing distance | 0.5m (1.64 ft) |
| Maximum magnification | 0.2x (35mm equivalent: 0.4x) |
| Image Stabilizer | Available |
| Mount type | Micro Four Thirds Mount |
| Filter diameter | 62mm |
| Total length | Approx. 84mm |
| Weight | Approx. 460g |
No, it cannot be mounted on Four Thirds mount specification cameras.
The lens is not waterproof; you should wipe it with a dry cloth.
Turn the power off and leave the camera in a plastic bag to acclimatize for about two hours.
