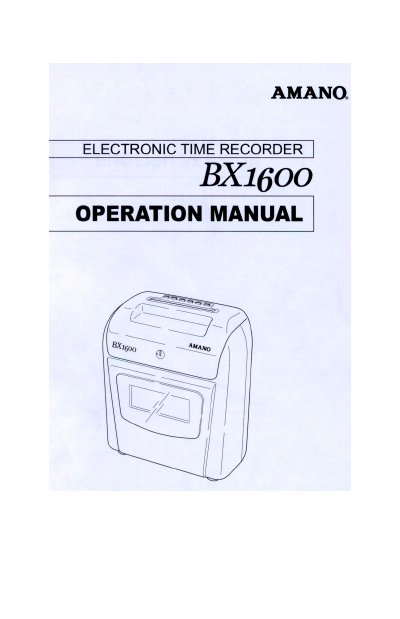

Amano BX1600 Electronic Time Recorder Operation Manual

About this manual

This manual provides instructions for the Amano BX1600 electronic time recorder. It details the components supplied with the unit, including the time recorder, keys, wall mounting bracket, and spare fuse. The document emphasizes safety precautions regarding electrical usage and installation environments.

What's inside

• Introduction
• For the Operational Safety
• Names of Parts
• Installation
• Operation
• Programming Section
• Troubleshooting
• Daily Maintenance
• Specifications
• Weekly Program Setting Table

Specifications

Frequently asked questions

Where should the time recorder not be installed?

The time recorder should not be installed outdoors or in locations exposed to rain.

What voltage range is required for the Amano BX1600 time recorder?

The device operates on either 110-120VAC or 220-240VAC power.

What are the maximum current ratings for the different voltage inputs?

The maximum current is 700mA for 110-120VAC and 750mA for 220-240VAC.

What happens if the BX1600 is installed outdoors or where it is exposed to rain?

The time recorder will not operate normally in these conditions.
