The MCR16N is a high voltage reverse blocking thyristor designed primarily for half-wave ac control applications such as motor controls, heating controls, and power supplies; or wherever half-wave, silicon gate-controlled devices are needed.

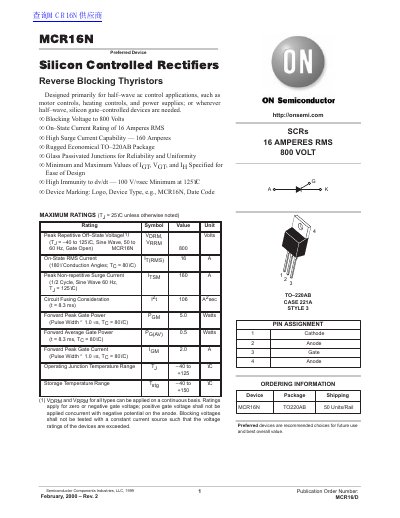

This document is a datasheet for the MCRI6N, a silicon controlled rectifier (SCR) designed primarily for half-wave AC control applications such as motor controls, heating controls, and power supplies. The device features a reverse blocking capability up to 800 volts and an on-state current rating of 16 amperes RMS.
| On-State RMS Current | 16 A |
|---|---|
| Peak Non-repetitive Surge Current | 160 A |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance Junction to Case | 1.5 °C/W |
| Package Type | TO-220AB |
The device has an on-state RMS current rating of 16 Amperes.
The device can block voltages up to 800 Volts.
The device can handle a peak non-repetitive surge current of 160 Amperes.
